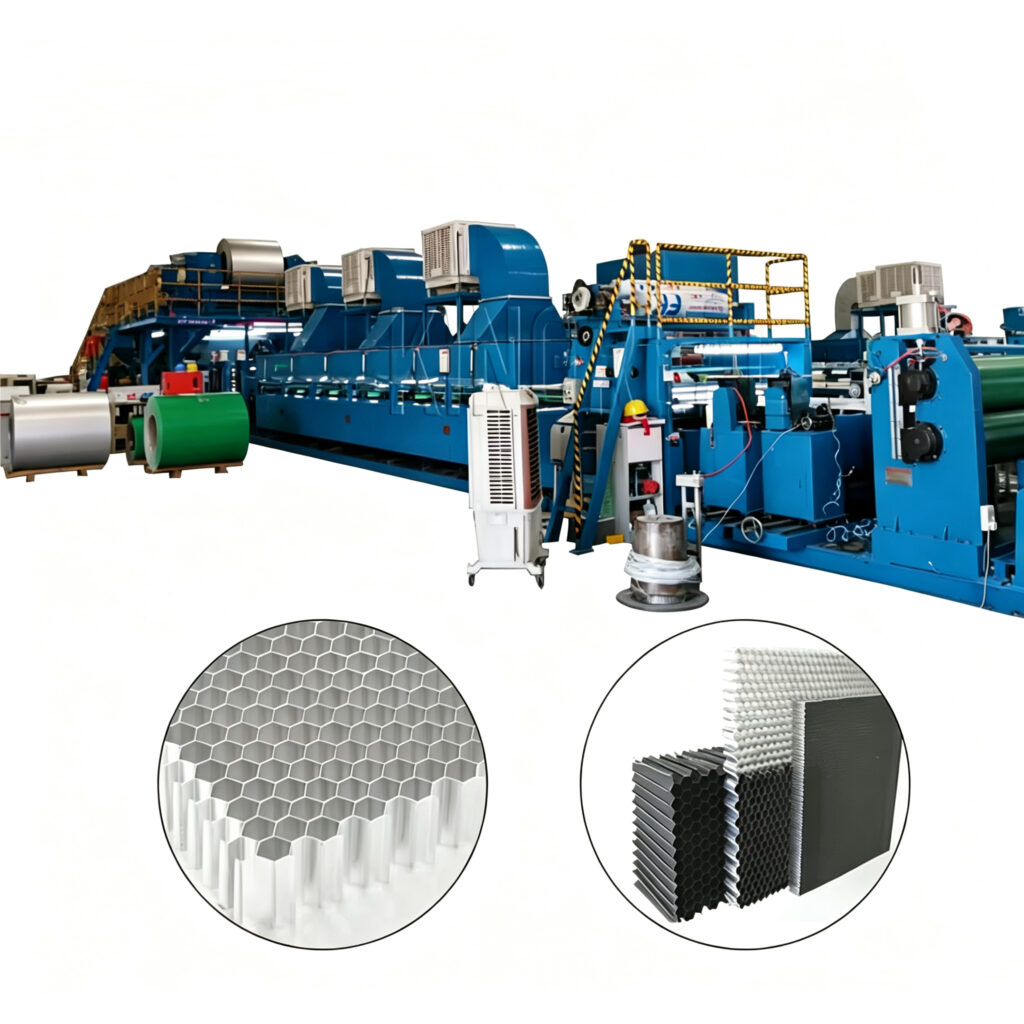

Aluminum Honeycomb Panel Manufacturing Equipment is a complete industrial solution designed for the efficient and consistent production of aluminum honeycomb sandwich panels. The equipment is developed for manufacturers supplying architectural, transportation, marine, industrial, furniture, and interior decoration markets where lightweight, rigid, durable, and dimensionally stable composite panels are required.
Aluminum honeycomb panels typically consist of aluminum face sheets bonded to an aluminum honeycomb core. The honeycomb structure provides an excellent combination of low weight and structural stiffness, while the aluminum skins provide surface protection, appearance, and additional mechanical performance. However, achieving consistent panel quality requires accurate material positioning, uniform adhesive application, controlled pressing, reliable curing, and precise finishing. Our Aluminum Honeycomb Panel Manufacturing Equipment is designed to integrate these processes into an efficient manufacturing workflow.
Complete Aluminum Honeycomb Panel Production Solution
The equipment can be configured according to the customer’s product specifications, production capacity, factory layout, and required automation level. A complete production system may include material feeding, panel positioning, adhesive application, honeycomb core assembly, pressing, curing, trimming, cutting, inspection, and material handling equipment.
The production process begins with the preparation and positioning of aluminum face sheets and honeycomb cores. The materials are accurately aligned before adhesive is applied. After assembly, the panel is transferred to the pressing system, where controlled pressure is applied to achieve stable contact between the aluminum skins and honeycomb core.
Depending on the selected adhesive technology, curing may be completed under controlled temperature and pressure conditions. After curing, the panel can be trimmed and cut to the required dimensions. Edge processing and surface inspection can then be carried out before packaging or further processing.
This integrated approach helps manufacturers reduce unnecessary manual handling and establish a more standardized production process.
High-Precision Panel Assembly
Accurate positioning is an important part of aluminum honeycomb panel manufacturing. Incorrect alignment of the aluminum sheet or honeycomb core can result in dimensional deviations, uneven edges, or problems during subsequent processing.
The Aluminum Honeycomb Panel Manufacturing Equipment can incorporate positioning and alignment systems designed to improve assembly accuracy. Depending on the machine configuration, operators can adjust the equipment for different panel dimensions and thicknesses.
For manufacturers producing multiple panel sizes, flexible tooling and adjustable working parameters can make product changeovers more convenient.
Controlled Adhesive Application
Adhesive quality has a direct influence on the bonding performance of an aluminum honeycomb panel. Uneven adhesive distribution may create weak bonding areas, while excessive adhesive can increase material consumption and affect production costs.
The manufacturing equipment can be configured with an adhesive application system suitable for the selected bonding process. The application method can be adjusted according to adhesive characteristics, panel construction, production speed, and product requirements.
Uniform adhesive application helps improve bonding consistency between the aluminum face sheets and honeycomb core while supporting stable production quality.
Pressing and Curing System
Pressing is one of the key stages in aluminum honeycomb panel production. The pressing system provides controlled pressure across the panel surface, helping the aluminum skins and honeycomb core maintain close contact during the bonding process.
The equipment can be configured with different pressing technologies according to production requirements. Temperature, pressure, pressing time, and curing conditions can be adjusted according to the selected adhesive system and panel structure.
Consistent pressing and curing conditions can help improve panel flatness, bonding quality, and production repeatability.
Flexible Panel Specifications
One of the advantages of customized Aluminum Honeycomb Panel Manufacturing Equipment is its ability to support different product specifications.
The equipment can be designed around requirements such as:
| Parameter | Configuration |
|---|---|
| Panel Width | Customized according to production requirements |
| Panel Length | Customized according to production requirements |
| Panel Thickness | Configurable |
| Aluminum Face Sheet | Selected according to application |
| Honeycomb Core | Aluminum honeycomb core |
| Core Thickness | Customized |
| Adhesive System | Configured according to bonding technology |
| Pressing Method | Customized |
| Automation Level | Manual / Semi-Automatic / Automatic |
| Cutting Method | Standard / CNC |
| Production Capacity | Configured according to target output |
This flexibility makes the equipment suitable for both standard product manufacturing and project-based customized panel production.
Applications of Aluminum Honeycomb Panels
The manufacturing equipment can be used to produce aluminum honeycomb panels for a wide range of applications.
Architectural Applications
Aluminum honeycomb panels are commonly used for exterior cladding, interior wall systems, ceilings, partitions, decorative panels, and other architectural components. Their lightweight structure can help reduce the overall weight of panel systems while maintaining good rigidity.
Transportation Applications
The equipment can also support the production of panels for railway interiors, metro systems, buses, coaches, RVs, trailers, and other transportation equipment. Weight reduction is particularly important in transportation applications, making honeycomb sandwich structures an attractive material solution.
Marine Applications
Aluminum honeycomb panels can be manufactured for ship interiors, yacht interiors, marine partitions, ceilings, doors, and furniture components. The aluminum construction can provide a durable panel structure suitable for demanding environments when the appropriate materials and surface treatments are selected.
Industrial Applications
The panels can also be used for equipment enclosures, machine structures, cleanroom systems, industrial partitions, and specialized composite components.
Automation and Production Efficiency
For manufacturers with high production volumes, automation can significantly improve production consistency and reduce dependence on manual operations.
The Aluminum Honeycomb Panel Manufacturing Equipment can be configured with automated or semi-automated material handling, panel positioning, adhesive application, pressing, conveying, cutting, and inspection processes.
Automation level can be selected according to production volume and investment requirements. A semi-automatic system may be suitable for manufacturers producing multiple customized panel specifications, while a higher level of automation can be considered for standardized high-volume production.
Quality Control
Quality control should be incorporated throughout the production process rather than performed only at the final inspection stage.
Important quality-control points include aluminum sheet dimensions, honeycomb core thickness, material alignment, adhesive distribution, pressing conditions, curing conditions, panel flatness, edge dimensions, and final appearance.
By controlling these parameters during production, manufacturers can reduce variation between individual panels and improve overall product consistency.
Designed for Customized Manufacturing
Different customers may require different aluminum honeycomb panel structures. Some projects may require lightweight interior panels, while others may require thicker structural panels with specific surface finishes or dimensional requirements.
For this reason, our Aluminum Honeycomb Panel Manufacturing Equipment can be engineered according to the manufacturer’s target products rather than using a fixed machine configuration.
Before equipment selection, manufacturers can provide information including panel dimensions, panel thickness, aluminum skin specifications, honeycomb core specifications, adhesive requirements, expected daily or monthly output, and desired automation level.
Based on these requirements, the production equipment can be configured to match the intended manufacturing process.
Complete Technical Support
A complete equipment solution should include more than machinery. Proper production-line planning, equipment installation, commissioning, process adjustment, and operator training are also important for successful project implementation.
Technical support can cover production-line layout, equipment configuration, installation guidance, commissioning, operating procedures, maintenance recommendations, and production-process optimization.
This allows manufacturers to establish a more reliable production workflow from raw material preparation through finished panel inspection.
Why Choose Aluminum Honeycomb Panel Manufacturing Equipment?
Choosing the right manufacturing equipment can directly influence production efficiency, product consistency, labor requirements, and long-term manufacturing costs.
Our equipment is designed around several core objectives:
- Consistent panel quality through controlled production parameters
- Flexible specifications for different panel sizes and structures
- Efficient production through optimized process integration
- Reduced manual handling through semi-automatic or automatic configurations
- Customized engineering based on actual factory requirements
- Scalable production capacity for different manufacturing volumes
- Professional technical support from equipment planning to commissioning
The result is a production solution that can be adapted to different aluminum honeycomb panel manufacturing requirements.
Build Your Aluminum Honeycomb Panel Production Line
The Aluminum Honeycomb Panel Manufacturing Equipment is suitable for companies planning to establish a new panel manufacturing facility, expand existing production capacity, or upgrade from manual production to a more standardized manufacturing process.
Whether your target market is architectural panels, transportation components, marine interiors, industrial panels, or customized composite structures, the equipment can be configured around your specific product requirements.
To develop a suitable equipment solution, manufacturers can provide the required panel length and width, panel thickness, aluminum skin thickness, honeycomb core specification, adhesive system, target production capacity, and factory automation requirements.
Based on these details, a customized Aluminum Honeycomb Panel Manufacturing Equipment configuration can be developed to support efficient, stable, and scalable production.
