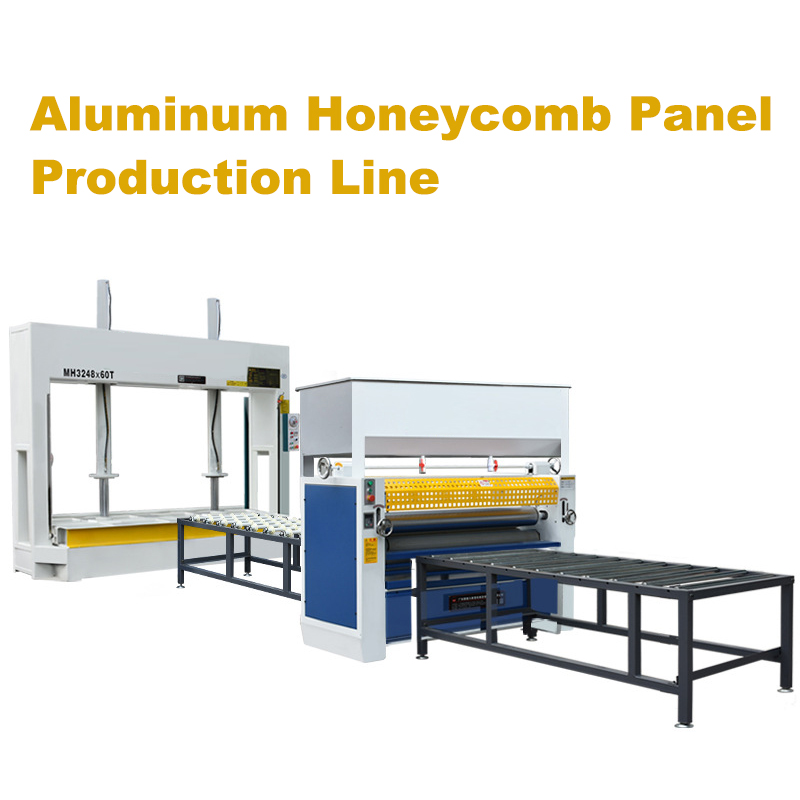

Our Aluminum Honeycomb Panel Production Line is a complete manufacturing solution designed for the continuous and efficient production of lightweight, high-strength aluminum honeycomb sandwich panels. The production line can be configured according to panel dimensions, core materials, production capacity, automation requirements, and final applications.
The system integrates material feeding, adhesive application, panel assembly, pressing, cooling, cutting, edge processing, and quality inspection into a coordinated manufacturing process. It is suitable for manufacturers producing aluminum honeycomb panels for construction, curtain walls, ceilings, interior decoration, transportation, marine applications, and industrial projects.
With a customized production line configuration, manufacturers can improve production consistency, reduce manual operations, optimize material utilization, and establish a scalable aluminum honeycomb panel manufacturing facility.
What Is an Aluminum Honeycomb Panel Production Line?
An Aluminum Honeycomb Panel Production Line is a combination of specialized machines used to manufacture aluminum honeycomb sandwich panels.
A typical panel consists of aluminum face sheets and an aluminum honeycomb core. Depending on the product design, different surface finishes, adhesives, core specifications, and panel thicknesses can be selected.
The production line controls the major manufacturing stages from raw material preparation to finished panel processing.
Typical production stages include:
Raw Material Preparation → Feeding → Adhesive Application → Core Assembly → Panel Lamination → Pressing → Cooling → Cutting → Edge Processing → Quality Inspection → Packaging
The exact configuration can be customized according to the manufacturer’s production requirements.
How Does an Aluminum Honeycomb Panel Production Line Work?
The production process is designed to maintain consistent panel dimensions, bonding quality, flatness, and production efficiency.
1. Aluminum Sheet Preparation
Aluminum sheets or coils are prepared according to the required panel specifications. Material thickness, width, surface treatment, alloy, and coating can be selected according to the final application.
Common surface options may include painted, anodized, brushed, wood-grain, stone-effect, and other decorative finishes.
2. Honeycomb Core Preparation
The aluminum honeycomb core provides the lightweight structural structure inside the sandwich panel.
The core can be prepared according to the required cell size, thickness, density, and mechanical performance.
Different honeycomb core configurations can be used depending on requirements for weight, stiffness, strength, and application.
3. Adhesive Application
A controlled adhesive application system applies bonding material to the required surfaces.
Uniform adhesive distribution is important for achieving reliable bonding between the aluminum face sheets and honeycomb core.
The adhesive system can be configured according to the selected adhesive type, production speed, panel dimensions, and curing requirements.
4. Panel Assembly
The aluminum face sheets and honeycomb core are accurately positioned and assembled.
Proper alignment helps maintain consistent panel dimensions and reduces material waste during subsequent processing.
For customized production lines, positioning and assembly systems can be configured according to different panel sizes and production requirements.
5. Hot Pressing / Cold Pressing
The assembled panel is transferred to the pressing system.
Depending on the adhesive system and manufacturing process, the production line can incorporate hot pressing, cold pressing, or other bonding technologies.
The pressing process helps establish consistent contact between the face sheets, adhesive layer, and honeycomb core.
6. Cooling and Leveling
After pressing, the panel may require controlled cooling and leveling.
This stage helps stabilize the panel structure and improve dimensional consistency before cutting and finishing.
Cooling requirements depend on the adhesive system, panel construction, production speed, and manufacturing process.
7. CNC Cutting
The bonded panel is cut to the required dimensions.
CNC cutting equipment can be integrated into the production line when manufacturers require accurate panel sizing, customized shapes, openings, or project-specific dimensions.
8. Edge Processing
Edge trimming and finishing equipment can be used to achieve the required panel dimensions and edge quality.
Depending on the final product design, additional edge processing equipment can be integrated into the production line.
9. Quality Inspection and Packaging
Finished panels are inspected for dimensions, surface quality, flatness, bonding condition, and other customer-defined specifications.
After inspection, the panels are packaged for storage, transportation, or direct shipment to construction and industrial projects.
Aluminum Honeycomb Panel Production Line Components
A complete production line can include different machines depending on the required manufacturing process.
| Equipment | Main Function |
|---|---|
| Material Feeding System | Feeds aluminum sheets or coils |
| Adhesive Application System | Applies adhesive uniformly |
| Honeycomb Core Preparation System | Prepares and positions honeycomb core |
| Panel Assembly System | Aligns face sheets and core |
| Laminating Machine | Combines panel components |
| Hot Pressing Machine | Applies controlled heat and pressure |
| Cold Pressing Machine | Provides controlled pressing and bonding |
| Cooling System | Stabilizes panels after pressing |
| Cutting Machine | Cuts panels to required dimensions |
| CNC Router | Performs precision cutting and customized machining |
| Edge Trimming Machine | Processes panel edges |
| Inspection Equipment | Checks panel quality and dimensions |
| Control System | Coordinates production-line operation |
The final equipment configuration can be customized according to panel structure, production capacity, factory layout, and automation requirements.
Technical Specifications
The specifications of an Aluminum Honeycomb Panel Production Line depend on the required panel design and production capacity.
| Parameter | Specification |
| Production Line Type | Automatic / Semi-Automatic |
| Product | Aluminum Honeycomb Panel |
| Face Sheet | Aluminum Sheet / Aluminum Coil |
| Honeycomb Core | Aluminum Honeycomb Core |
| Panel Thickness | Customized |
| Panel Width | Customized |
| Panel Length | Customized |
| Aluminum Thickness | Customized |
| Honeycomb Cell Size | Customized |
| Production Speed | Customized |
| Production Capacity | Customized |
| Pressing Method | Hot Press / Cold Press |
| Adhesive System | Customized |
| Cutting Method | Automatic / CNC |
| Control System | PLC / HMI |
| Factory Layout | Customized |
| Power Supply | Customized |
Final specifications should be confirmed according to the customer’s target panel structure, annual production capacity, factory conditions, and application requirements.
Production Capacity
Production capacity is one of the most important factors when selecting an aluminum honeycomb panel manufacturing line.
The required capacity depends on:
- Panel dimensions
- Panel thickness
- Honeycomb core specification
- Adhesive curing requirements
- Pressing cycle
- Production speed
- Automation level
- Number of shifts
- Product mix
- Factory layout
For manufacturers with multiple panel specifications, the production line can be designed with flexible processing capabilities to support different product configurations.
Instead of selecting a standard machine based only on maximum speed, buyers should evaluate the complete production cycle and expected annual output.
Automatic vs Semi-Automatic Production Line
Different manufacturers have different production volumes and labor requirements.
Semi-Automatic Production Line
A semi-automatic line may be suitable for manufacturers starting a new production facility or producing multiple customized panel specifications.
Advantages include:
- Lower initial investment
- Flexible production
- Easier product changeover
- Suitable for customized orders
- Reduced equipment complexity
Automatic Production Line
An automatic aluminum honeycomb panel production line is designed for manufacturers requiring higher production efficiency and greater process consistency.
Potential advantages include:
- Reduced manual handling
- Higher production consistency
- Improved process control
- Reduced labor requirements
- Better production efficiency
- Easier production monitoring
- Scalable manufacturing capacity
The appropriate automation level should be determined according to production volume, labor cost, product specifications, and investment budget.
Custom Aluminum Honeycomb Panel Production Line
Every aluminum honeycomb panel manufacturer may have different production requirements.
ONEBOND can develop customized production-line configurations according to:
- Required panel dimensions
- Target production capacity
- Aluminum material specifications
- Honeycomb core specifications
- Panel thickness
- Adhesive technology
- Pressing requirements
- Cutting requirements
- Factory dimensions
- Automation requirements
- Budget
- Final application
The production-line layout can also be planned according to the available factory space and material flow.
For manufacturers building a new production facility, the complete solution can cover equipment configuration, production-process planning, line layout, installation, commissioning, and operator training.
Applications of Aluminum Honeycomb Panels
Aluminum honeycomb panels are used in applications where lightweight construction, dimensional stability, structural performance, and surface quality are important.
Building & Construction
Production lines can be used to manufacture aluminum honeycomb panels for:
- Exterior wall cladding
- Curtain wall systems
- Building facades
- Interior wall panels
- Ceiling systems
- Partition systems
- Decorative architectural panels
Marine Applications
Aluminum honeycomb sandwich panels are also used for selected marine applications where low weight and structural efficiency are important.
Potential applications include:
- Ship interiors
- Cabin walls
- Marine ceilings
- Partition panels
- Interior decoration
Transportation
The lightweight characteristics of honeycomb sandwich construction make these panels suitable for selected transportation applications, including:
- Railway interiors
- Bus interiors
- RV panels
- Trailer panels
- Vehicle interior panels
Industrial Applications
Depending on the panel structure and performance requirements, aluminum honeycomb panels can also be manufactured for:
- Industrial partitions
- Equipment enclosures
- Cleanroom applications
- Interior architectural systems
- Specialized lightweight structures
How to Choose an Aluminum Honeycomb Panel Production Line?
Before purchasing a production line, buyers should evaluate several key factors.
1. Define Your Target Product
Determine the required:
- Panel thickness
- Panel width
- Panel length
- Aluminum thickness
- Honeycomb core specification
- Surface finish
- Bonding method
2. Determine Production Capacity
Calculate expected monthly and annual demand rather than selecting equipment based only on maximum machine speed.
3. Select the Automation Level
Consider labor availability, production volume, product variety, and future expansion plans.
4. Evaluate Factory Layout
The production line should allow efficient material movement from raw-material storage to finished-panel packaging.
5. Consider Future Expansion
A modular production-line design can make it easier to add equipment or increase production capacity in the future.
6. Evaluate Technical Support
A complete production-line supplier should be able to provide equipment installation, commissioning, operator training, technical documentation, and after-sales support.
Turnkey Aluminum Honeycomb Panel Manufacturing Solution
For customers planning a new aluminum honeycomb panel manufacturing facility, a turnkey solution can simplify the equipment-selection and production-line integration process.
A complete project may include:
Production Process Design
↓
Equipment Configuration
↓
Factory Layout Planning
↓
Production Line Manufacturing
↓
Installation
↓
Commissioning
↓
Operator Training
↓
Production Optimization
The objective is not simply to supply individual machines, but to establish a coordinated manufacturing system that meets the customer’s product and production requirements.
Why Choose a Customized Production Line?
A customized production line allows manufacturers to match equipment configuration with actual production requirements instead of purchasing unnecessary equipment.
This approach can help optimize:
- Initial equipment investment
- Factory space
- Labor requirements
- Production efficiency
- Material utilization
- Product consistency
- Future production expansion
For manufacturers producing multiple panel specifications, customized equipment configuration can also provide greater flexibility during production changeovers.
Request an Aluminum Honeycomb Panel Production Line Quote
Planning to establish or upgrade an aluminum honeycomb panel manufacturing facility?
Provide us with your target panel specifications, production capacity, factory dimensions, automation requirements, and application information.
Our engineering team can evaluate your requirements and recommend a suitable Aluminum Honeycomb Panel Production Line, including equipment configuration, production process, line layout, and customized technical specifications.
Contact ONEBOND for a customized production-line proposal and technical consultation.
